The harmonic damper is a critical interface between the crankshaft and all front-end engine accessories. Proper fastener preload is essential to maintaining damper location, controlling torsional vibration, and preventing fretting or movement under high RPM and increased cylinder pressure.

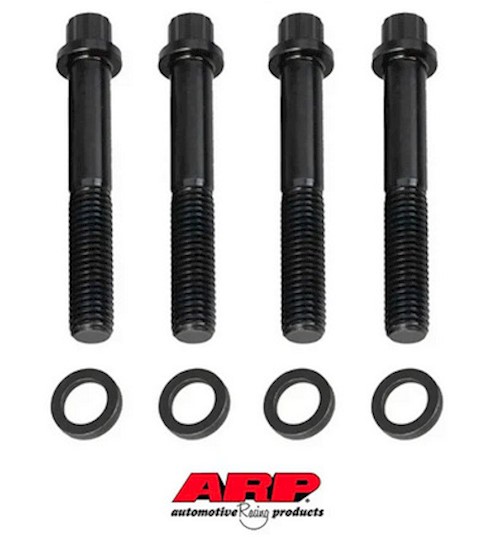

BMW OEM damper bolts are torque-to-yield fasteners designed for single-use and factory power output. When power levels, RPM, or transient loads are increased, these fasteners no longer provide sufficient or consistent clamping force. The ARP bolt kit replaces the OEM TTY design with a reusable, high-strength fastener capable of maintaining precise preload under elevated stress.
Installation Notes
-
Always remove and discard OEM torque-to-yield bolts
-
Inspect the crankshaft flange and harmonic damper mating surfaces for debris, burrs, or damage prior to installation
-
Threads in the crankshaft must be clean and dry; chase threads if necessary
-
Do not reuse damaged or previously over-stretched hardware
-
Use only the lubricant specified by the fastener manufacturer
Lubrication
Apply ARP Ultra-Torque Fastener Assembly Lubricant to:
-
Bolt threads
-
Underside of bolt heads
This is critical. Torque values are calculated based on ARP's lubricant and material properties. Substituting oils, greases, or installing dry will result in inaccurate preload.
Torque Procedure
-
Install all four bolts finger-tight to seat the damper evenly
-
Torque bolts in a crisscross pattern to ensure uniform clamp load
-
Tighten in multiple steps rather than one final pull
Final Torque Specification:
➡️ Follow ARP's supplied torque value for this specific bolt kit
Do not use BMW factory torque-to-yield specs. ARP fasteners are designed to achieve clamp load through controlled torque, not bolt stretch.
Engineering Rationale
ARP bolts provide:
-
Consistent, repeatable preload across all fasteners
-
Improved resistance to loosening under torsional vibration
-
Increased safety margin for high-boost and high-RPM operation
This upgrade is strongly recommended for:
-
Tuned B58 engines
-
Increased boost pressure
-
Track use, aggressive street driving, or endurance applications
-
Any build where crankshaft reliability is non-negotiable
Final Notes
Proper installation is not optional. Fasteners are a system, and preload accuracy matters. When installed correctly, the ARP Harmonic Damper Bolt Kit eliminates one of the known weak points in higher-output B58 engines and provides long-term reliability where factory hardware reaches its limits.
