*** You will get 2 shipments. One from DOC Race and one from
Precision Turbo. We will ship your turbo kit minus turbo within 4
weeks. Your turbo will ship direct from PTE and their lead time
varies. Current lead time on PTE is 4 weeks. If you can not wait 4 weeks please do not place an order!
*** Billing and shipping address must match when checking out or orders WILL be canceled.
Stainless steal braided oil drain line now included.
Fits RWD models only. Please do not ask us if we would make a kit for AWD.
Please note you will receive 2 packages. Please do not be alarmed if
you do not see your turbo in the box. Your turbo will be shipped to
you directly from Precision Turbo and they normally take anywhere from
2-4 weeks to ship. If you would like an accurate lead time please email
us.
The DOC Race turbo kit is the ultimate turbo kit for your street
machine! They come complete with all necessary hardware to install and
is listed below. The kits come with Precision turbos because they are
leaders in the industry for offering top performing products that are
reliable so you can make good power and not have to service your turbo
for years to come. You can choose from your choice of a 5862 up to a
6870 with horsepower ratings from 640hp up to 1100hp (ratings below).
Included is a T4 twin scroll manifold which is the heart of this
turbo kit. Our manifold has been redesigned (9/20) to now be a one
piece design for ease of installation. It was put to the test by a
handful of very high performing race cars before attempting to fit to
our test car. With the design it is capable of producing well beyond
1000hp for anyone looking to really push the limits of this platform.
To control all of this, boost is regulated by a pair of Turbosmart 40mm
wastegates which are mounted down low and out of the way of heat. The
wastegates can be accessed easily without taking out any hot exhaust
parts. This will come in handy if you ever need to change springs in
your wastegates on the dyne or after hard runs.
Boost is fed to the intercooler by a single 2.5" aluminum charge
pipe. The downpipe is made of 3" stainless tubing in two pieces which
is V-Band and connects to your factory or any aftermarket exhaust that accepts factory gaskets.
5862 GEN2 CEA- 640hp
6062 GEN2 CEA- 750hp
6266 GEN2 CEA- 800hp
6466 GEN2 CEA- 900hp
6766 CEA- 935hp
6870 GEN2 CEA- 1100hp
* Factory fuel injectors will support upwards of 550hp. It is
advised to use an aftermarket port injection system when going beyond
that level. We suggest an AD-Engineering port injection kit which
include additional fuel injectors to support the power level this turbo
kit is capable of. This is the system we run on the DOC Race car and is
driven daily without any sort of stalling.
* As of 9/20 our kits come with the most updated O2 placement to help with burning out O2 sensors.

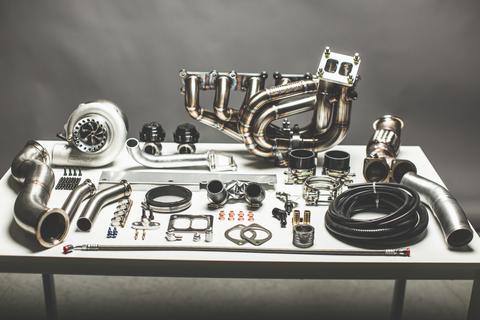

Parts list:
Precision Turbo, (2) Turbosmart Comp40 wastegates (comes with
14psi springs), DOC Race Stainless Multi-Piece V-Band Manifold, 3"
Stainless Upper Downpipe, 3" Lower Downpipe (connects to factory
location exhaust), V-Band Clamps, (2) Stainless Dump Tubes, 2.5"
Aluminum Intercooler Charge Pipe, 2.5" Silicone Couplers / Clamps, 4"
Shorty Filter, 5/8" Oil Drain Line Hose, Heat shield, T4 Turbo Gasket,
(6) OEM Style Doughnut Gaskets, (4) 10x1.25 Studs / Nuts, -4an Oil Feed
Line Kit, Coolant Block Offs & Oil Feed Adapter Fitting, CNC Coolant
Pipe / Hardware, Coolant Tank Relocation Bracket, Coolant Hose To
Waterpump / Hose Clamps, 5/8" Silicone Hose To Coolant Tank / 5/8" Barb
Fittings / Hose Clamps, Nuts / Bolts, 10 ft Silicone Vacuum Hose, (3)
Vaccuum Tees, DOC Race Turbo Blanket
FAQ:
Does the kit come with a MAC solenoid?
- No the kit does not come with a MAC solenoid and is not required for
an install. It is only required when you are wanting to change boost
settings with a tuning device such as JB4 or Motiv boost box.
Is it required to remove the subframe to install the kit?
- It is not required to remove the subframe to install the kit. For
our one piece design manifold you will need to lift the motor
approximately 2" and install the manifold from up top.
What other things should I plan on purchasing when installing your kit?
As with any build you should think about the supporting mods required
for your individual power goals. Supporting intercooler, chargepipe/BOV
Combo, Fueling, Clutch, Tuning Software MHD/JB4, established tuner and
if you're smart.. fresh brakes, tires and any needed maintenance. The 2
items below are what we suggest you replace as preventative
maintenance.
- 2 x BMW OEM 2 Bolt Exhaust Gaskets - 18307553603
- 1 x BMW Coolant Pipe O-Ring - 11537545302
