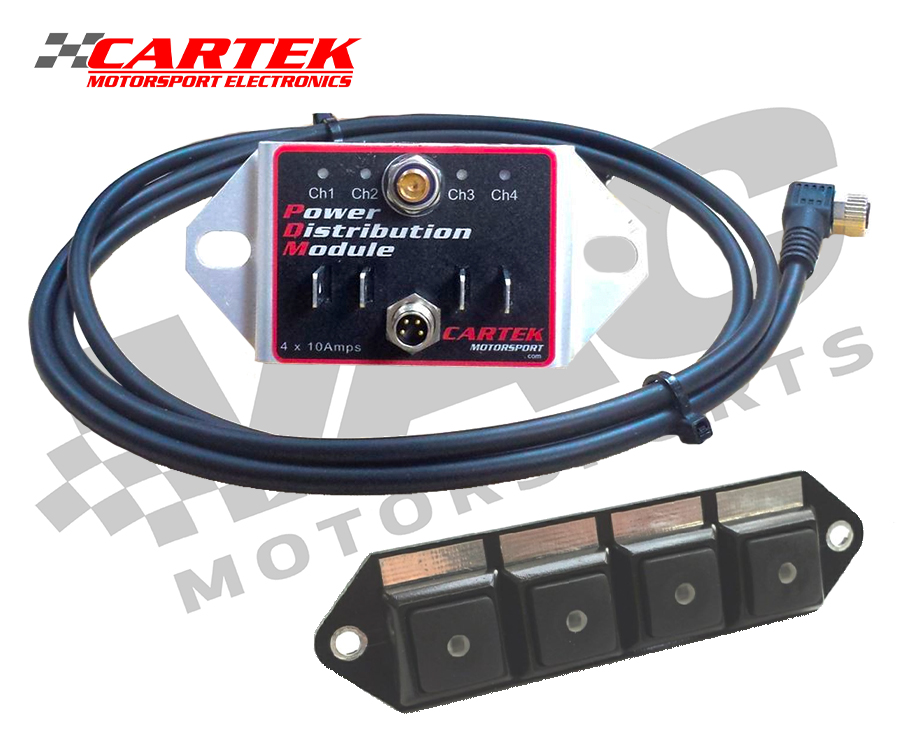

Cartek Power Distribution Module Kit, 4 Button

The 4 channel Power Distribution Module from CARTEK has been designed to replace the functions of fuses, circuit breakers and relays in one small, fully electronic unit.

This Power Distribution Module is ideal for race cars and motorcycles  which  have  minimal  onboard electrical  circuits but still require    rugged and reliable protection and control.
Simple connections and no configuration procedures makes this system very easy use and quick to install.

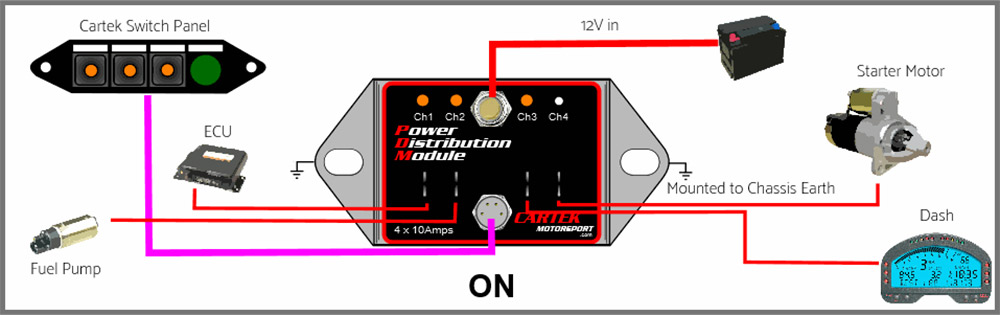

Outputs  can  be  used  to  control  power  to  various devices such    as ECUs, instrumentation, lighting, starter solenoid, radiator fan, etc.
Visual over-current and short-circuit  indication makes fault finding simple.
Can be supplied on it’s own or as a kit with switch panels.

FEATURES

• Fully electronic with no moving parts.
• Totally sealed against water and dirt.
• Completely resistant to shock and vibration.
• Each channel incorporates over-current protection.
• Channels  can  be  controlled  by  switch  or  signal
  inputs.
• Dual-coloured status LED for each channel.
• Very small and weighs just 80g.
• Manufactured in UK using high quality components.

Specifications:

• Size:L = 90mm,  W = 42mm.
• Weight:80g.
• Positive Power terminal:M6 stud.
• Channel Output connections: 6.3mm Male Spade Terminals
• Electrical Connector:Binder
• Flying Lead:Binder 79 3384 42 04 (2 meter long)
• Operational Voltage:7v - 18v
• Outputs:10A - 12A (continuous), 18A (10 seconds)
  each channel. Maximum total 50A.
• Current consumption:0.02A (No Load)
• Operating temperature:-10°C  -  +85°C.
• Storage temperature:-40°C - +125°C
