A Plug’n’Play solution for your steering wheel (new version for 2017!)
Introduction
The Wireless Control System from CARTEK is the quickest and easiest way to install pushbutton controls to a detachable racing steering wheel. The system has 8 pushbutton switches which are wirelessly linked to 8 relays within the Relay Control Unit. These relays are microprocessor controlled and individually configurable to provide a choice of functions including momentary, latching and flashing modes for uses such as: PTT radio, pit lane limiter, dash menus, lights, indicators, etc.

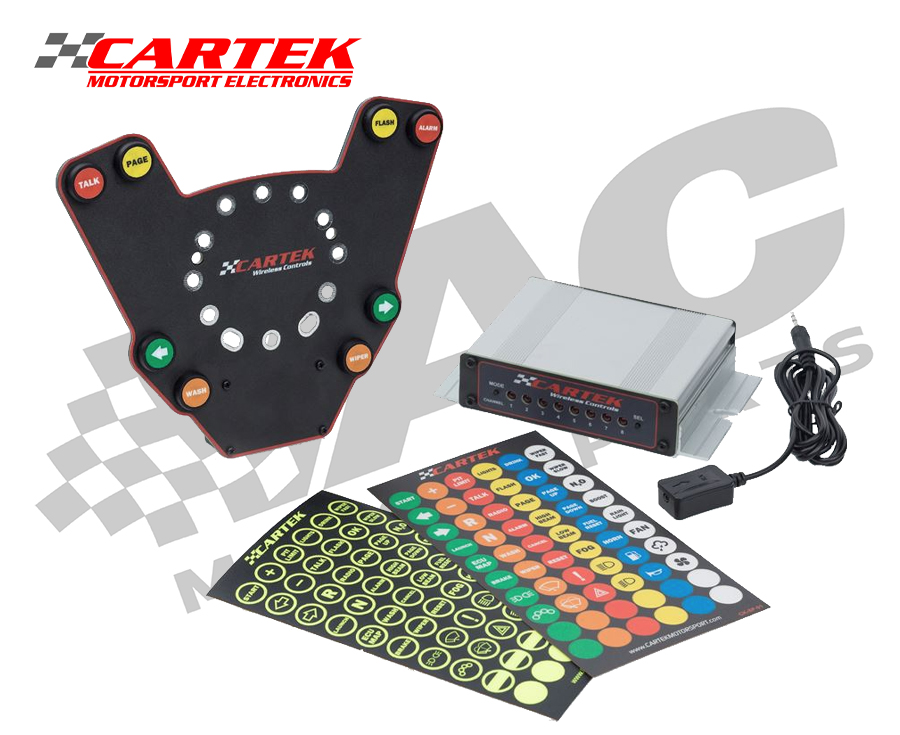

The complete system includes a universal fitting steering wheel panel, incorporating 8 sealed pushbutton switches and infra red transmitter module, an infra red receiver and a relay control unit.
Product Details
Cartek uses Infrared to communicate between the Steering Wheel and Control System. By using this technology the wireless communication is completely protected from outside signals such as radio waves and EMF unlike other systems on the market. The system also allows the wireless link to be full 360 degrees.

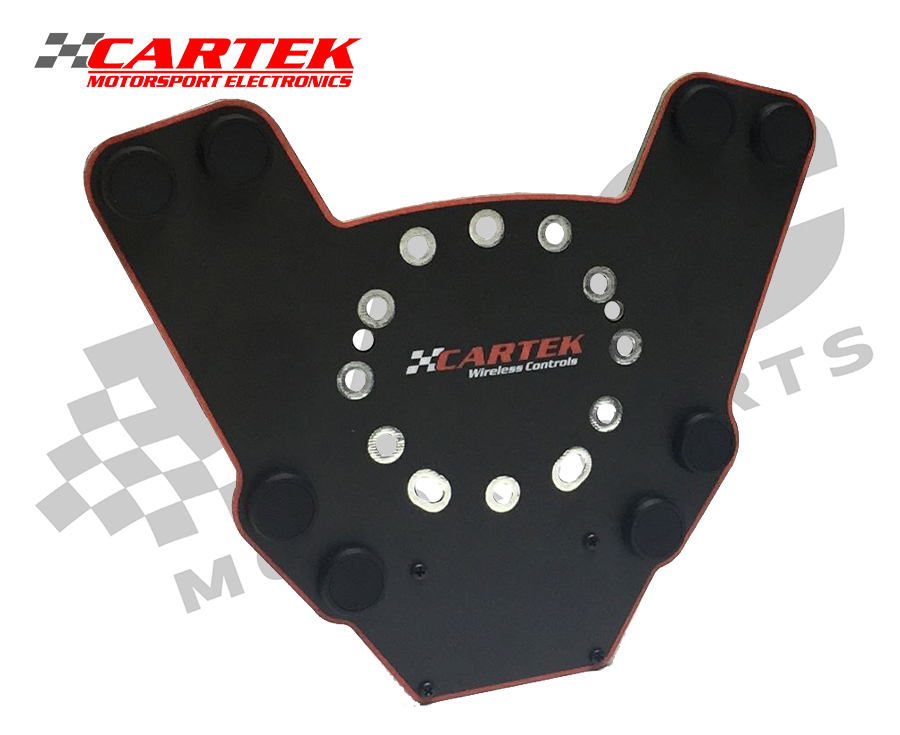

The infrared Transmitter module is mounted to rear of the Steering Wheel Pushbutton Panel and is battery powered. The Transmitter only consumes electrical power when a pushbutton is pressed and therefore does not need to be turned off when not in use.
When a pushbutton is pressed an LED on Transmitter will show the status of the internal battery. If the LED shows Green then the battery is in good condition, if the LED shows Red then the battery needs to be replaced.
This highly efficient power consumption yields an average of 26280 hours of battery life!
How It Works
Channel Mode Configuration
Each channel can be individually configured to perform any 1 of 5 different functions:
- Mode 1: Momentary action
- Mode 2: Latching (without memory)
- Mode 3: Latching (with memory)
- Mode 4: Flashing (slow speed, minimum 5 seconds)
- Mode 5: Flashing (fast speed, minimum 3 flashes)
- Mode 6: Flashing (slow speed, latching)
It is also possible to alter which pushbutton is allocated to which channel. Full reset function is also available.
Customize Your Own
The Wireless Control System can be mounted to most racing and aftermarket steering wheels. It now comes a multi coloured vinyl pack and UV Fluorescent vinyl pack (glow in dark under UV light) allowing full customisation of the steering wheel.
Technical Specifications
Relay control unit
|
Size:
|
W=108 mm, H=30 mm, L=85 mm
|
Weight:
|
240g
|
Rear connectors:
|
2 x 8 Way MOLEX Minifit
1 x 2 Way MOLEX Minifit
1 x Jack Plug
|
Power:
|
12v
|
Relay current rating:
|
10 A
|
Response time:
|
70ms
|
Steering wheel switch panel
|
Size:
|
W=194 mm, H=160 mm
|
Weight:
|
20g (including battery)
|
Power:
|
Internal battery mn21 (last approx 3 years)
|
Part Numbers:
|
CK-WS-09 (Standard 8 Channel Kit)
CK-WX-07 (Paddleshift Kit)
|
