The Ultimate Charge-Air Cooling Solution for High-Boost S58 Builds
Precision engineered by CSF and PWR, this is the most advanced billet aluminum charge-air-cooler manifold ever developed for the BMW S58 engine. Designed for street, strip, and track enthusiasts pushing well beyond stock power levels, the CSF #8233 offers unmatched performance, strength, and reliability under extreme conditions.
✅ Key Benefits:
-
Integrated water-to-air bar & plate charge-air-cooler by PWR - Pressure-tested to 120 PSI
-
Dyno proven to reduce post-IC IATs by up to 60°F
-
Supports 800-1200+ HP builds with zero pressure drop compared to OEM
-
Precision CNC billet aluminum construction - replaces weak factory plastic manifold
-
Plug-and-play port injection ready with integrated -8AN fuel rail
-
OEM-level fit and finish - true drop-in installation, no cutting or modifications
💡 Product Highlights:
🔥 Built for High Performance
Developed for high-boost S58 applications, the CSF manifold is engineered to outperform under extreme power and thermal demands. Tested at 45 PSI on builds making over 1000 WHP, it delivers:
-
Superior thermal efficiency: 89%+ vs. 86% OEM
-
Minimal pressure drop: 1.10 PSI under full load
-
Increased core volume: +23.6% vs. OEM
❄️ Industry-Leading Cooling Technology
Featuring a custom PWR bar-and-plate core with 48 air rows and 49 water rows, this manifold utilizes a counter-flow design to optimize thermal exchange. With higher fin density and thinner materials than any competitor, it outperforms everything else on the market -- including OEM and "German-engineered" alternatives.
🧊 KIYLEX® Thermal Rejection Spacer (Exclusive)
CSF includes its proprietary KIYLEX® thermal barrier spacer, which isolates the manifold from the cylinder head to drastically reduce heat transfer, combat heat soak, and improve charge-air cooling efficiency during extended high-load operation (e.g., roll racing, track driving).
💪 Unmatched Construction & Fitment
-
100% TIG welded billet aluminum body
-
Oversized plenum for increased airflow
-
Machined vacuum & sensor pad for additional accessories
-
OEM harness mounting provisions, O-ring grooves, and dowel alignment
-
Oil filter clearance pocket for easy maintenance access
🔧 Plug-and-Play Port Injection Support
-
Integrated fuel rail with -8AN fittings (ID1050.34.14.14.6 injectors recommended)
-
7mm fuel rail apertures for maximum flow
-
1/8" NPT ports per runner - pre-plugged for meth/nitrous setups
🎨 Finish Options:
-
Raw Billet Aluminum - CSF #8233 - MSRP $6,599
-

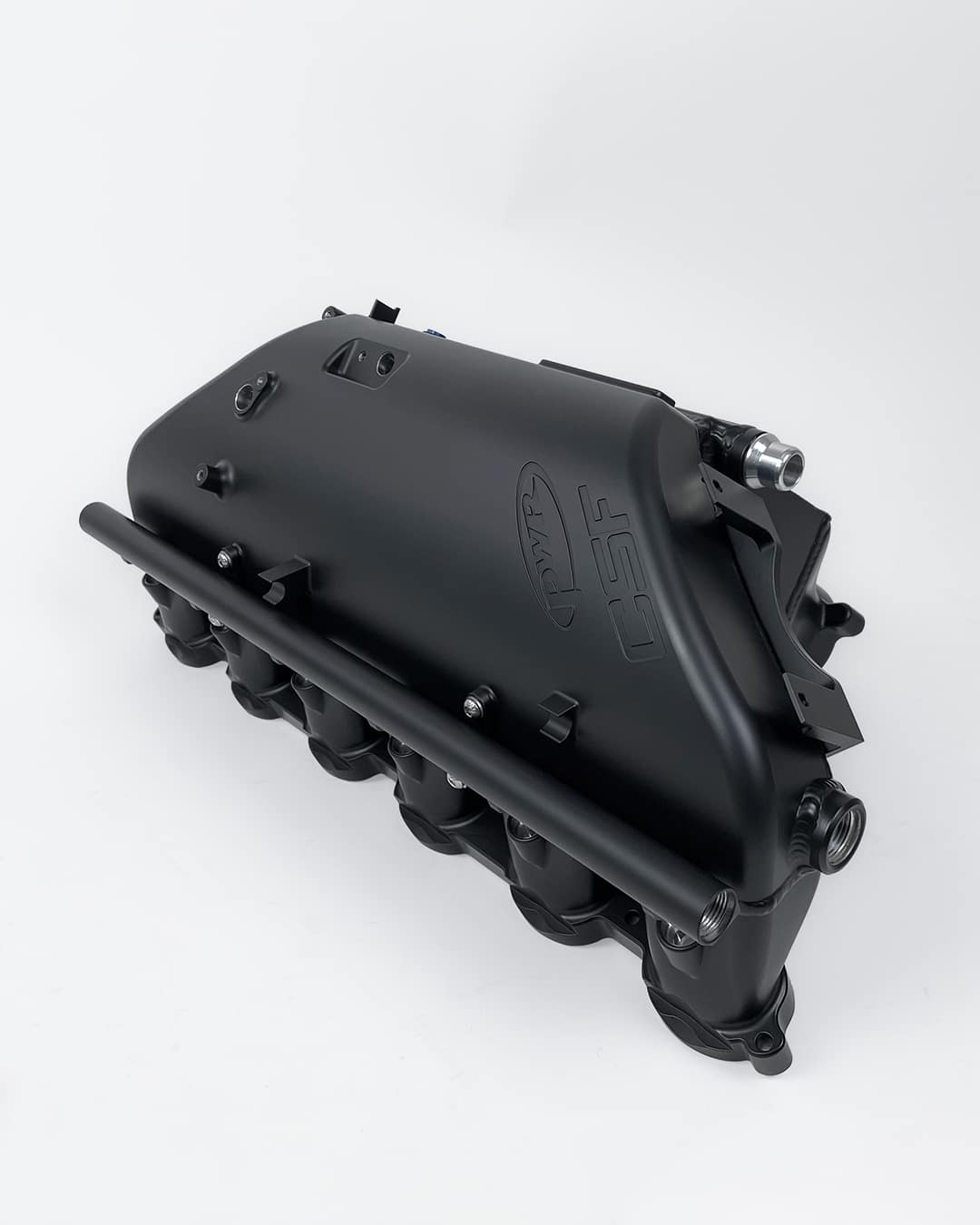

Thermal Black Heat Dispersion Cerakote - CSF #8233B - MSRP $6,995
-
Custom Powder-Coated Finishes - CSF #8233C - MSRP $6,995
(Over 30 custom finishes available -- from M Splatter to Techna Bronze)

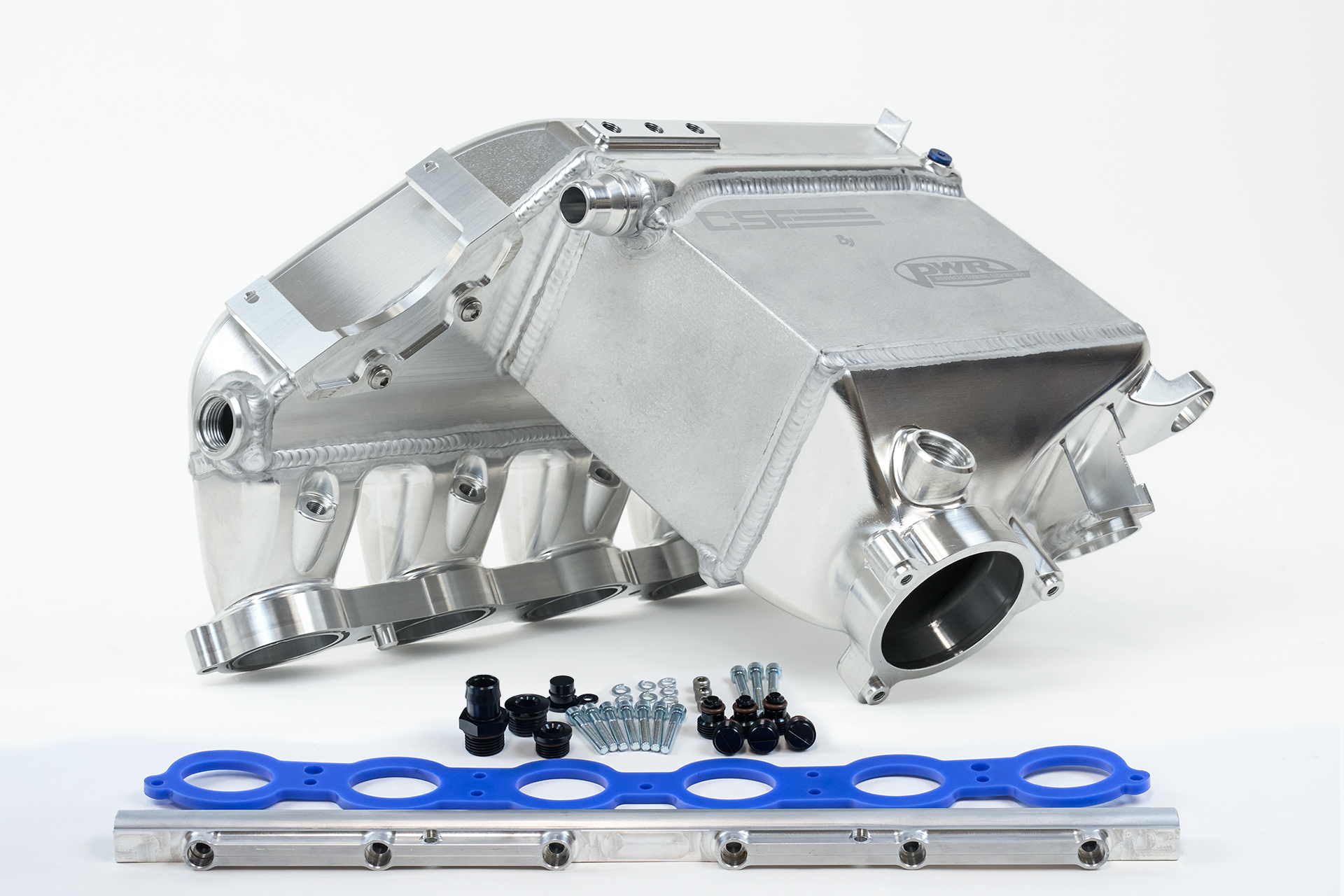

📦 What's Included:
-
CSF by PWR Charge-Air-Cooler Manifold
-
KIYLEX® Spacer & Hardware
-
Fuel Rail Assembly & Block-Offs
-
Installation Hardware + Instructions
-
Built-in Bleeder Valve + ORB Ports
✅ Fitment:
-
2021+ BMW G80 M3 (incl. Competition)
-
2021+ BMW G82/G83 M4 (incl. Competition)
-
2022+ BMW G87 M2
-
2020+ BMW F97 X3M / F98 X4M
OEM PN: 17-51-8-092-584 / 17-51-8-053-321
🏁 Tested. Proven. Trusted.
Backed by over a year of R&D, dyno-tested with MotoIQ, and real-world proven with multiple 1000+ WHP builds -- this is the ultimate charge-air-cooling solution for BMW S58 owners who demand the best.
It's time to level up.
