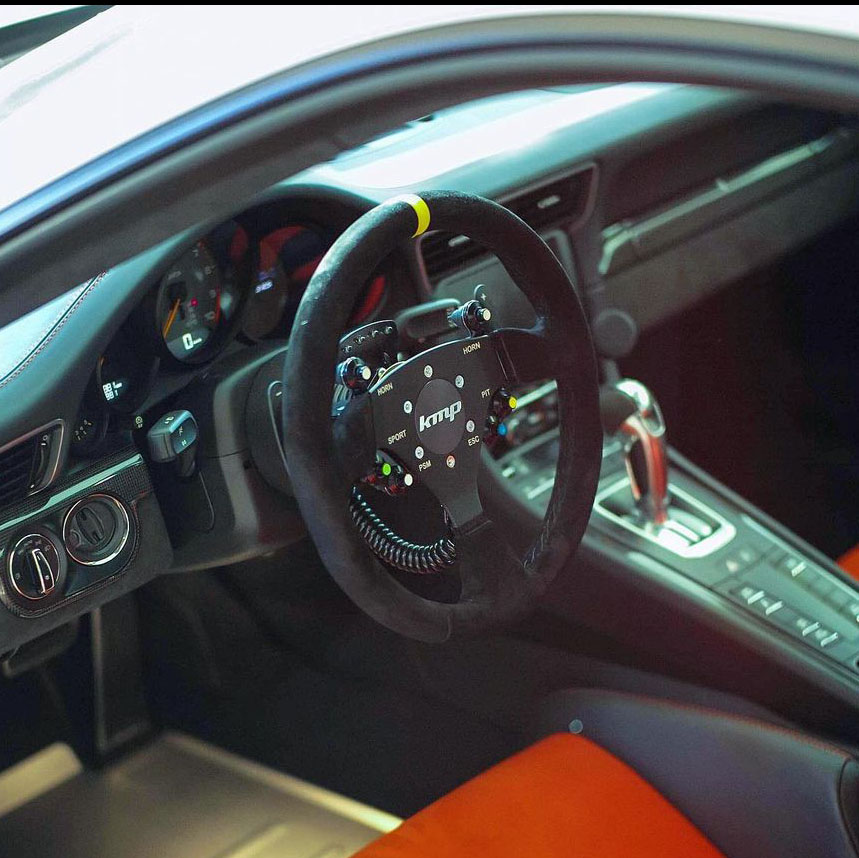

Upgrade your driving experience by replacing the OEM wheel to an alcantara racing wheel!
If an OEM steering wheel is removed, there will be several errors active. The racing wheel has specially developed electronics inside which simulate the OEM wheel. The plug and play solution makes sure there are no ECU error messages and no airbag light will turn on after installation.
The Porsche 991 GT3RS racing wheel is standard equipped with a 44mm spacer. It is possible to replace the spacer with a quick release adapter at additional costs (+€170). Both options will have a curly cable between the steering wheel and the hub.
Free to use buttons
A ‘free to use’ button can be used for anything you want. These buttons are switched to ground, and can be used with the supplied flying leads. The flying leads are connected into the back of the slip ring (dashboard side). Connect an external timer, flash light or anything you would like to control directly from your racing wheel. The wiring for each custom function needs to be done by the customer.
Different models
There are three different models available for the Porsche 991 GT3RS . The basic version has two buttons and is the bare minimum setup. The standard model is equipped with 6 buttons. Four of these buttons are used to control functions which are also on the mid-console, such as Sport or PIT. The carbon LED plate is used as indication for function status (on/off). The professional version has the same functionalities as the standard model, but it is equipped with a Deutsch connector, which allows you to remove the steering wheel completely. This professional model is often used for 24H endurance racing.
| Art. no. |
Model |
Right bottom |
Right middle |
Right top |
Left top |
Left middle |
Left bottom |
| 01.06.02050 |
Basic |
Free to use |
– |
– |
– |
– |
Free to use |
| 01.06.02051 |
Basic |
Free to use |
– |
– |
– |
– |
Horn |
| 01.06.02072 |
Standard |
SPORT |
PIT |
Free to use |
Free to use |
TC+ESC |
ESC |
| 01.06.02073 |
Standard |
SPORT |
PIT |
HORN |
Free to use |
TC+ESC |
ESC |
| 01.06.02074 |
Professional |
SPORT |
PIT |
Free to use |
Free to use |
TC+ESC |
ESC |
| 01.06.02075 |
Professional |
SPORT |
PIT |
HORN |
Free to use |
TC+ESC |
ESC |
The function names will be laser engraved in the steering wheel. If the functions on the ‘Free to use’ switches are already known, please add this as a note to the order. If the function names are not supplied at order, there will not by any engraving at these switch positions. It is possible to laser engrave the wheel any time later at KMP (€45 per wheel).
