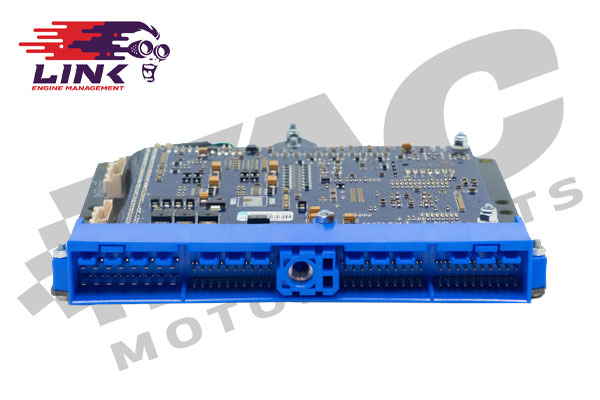

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below. The N300X ECU is Designed to suit the VG30DET engine.
- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- Includes an onboard 4 bar or 7 bar MAP sensor.
- Most factory features are supported.
- It is highly recommended to fit an IAT sensor with this model.
- Check the features tab for I/O expansion options.
- This ECU will need a modification before E-Throttle is usable.
There are currently no reviews of this
product.
Submit a Review
G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune - automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory
- Staged injection
- Knock with "windowing"
I/O Expansion Options:The following expansion connector inputs/outputs are provided: Expansion connector 1 GND Sensor Ground Only +5V Out Low Current +5V Supply DI 5 Digital Input DI 6 Digital Input Volt 8 Analog Volt Input Volt 7 Analog Volt Input Temp 3 Analog Temp Input Temp 4 Analog Temp Input Expansion Connector 2 Gnd Sensor Ground Only +5V Out Low Current +5V Supply Ign 7 Ignition 7 Auxiliary Output Ign 8 Ignition 8 Auxiliary Output DI 7 Digital Input DI 8 Digital Input An Volt 9 Analog 0-5V input An Volt 10 Analog 0-5V input
Z32 300ZX VG30DE
Z32 300ZX VG30DETT
