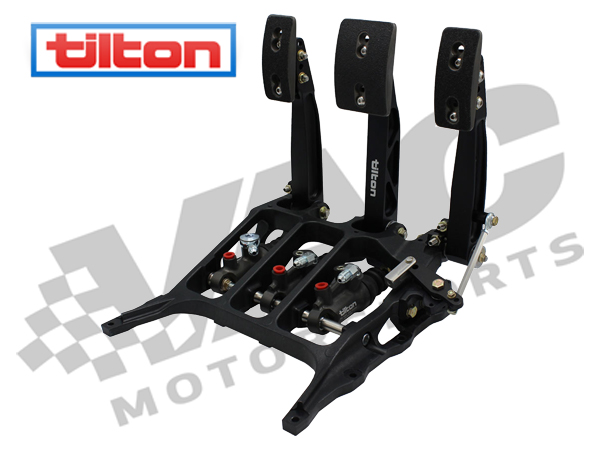

Tilton 850 Series 3-Pedal Underfoot Pedal Assembly

Tilton’s 850-Series 3-pedal Underfoot pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies.  Features a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration.

Features:

• High-efficiency balance bar and pivot-mount master cylinders design
• Forged aluminum pedals engineered for high rigidity and low weight
• Adjustable pedal ratio (5.4:1 to 6.9:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Lightweight and high-strength aluminum frame
• 7/16” diameter balance bar provides maximum rigidity. PTFE coated aluminum clevises allow for increased durability and reduced friction
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction
• Throttle linkage kits options for mechanical linkage and Drive-by-Wire systems (sold separately)
