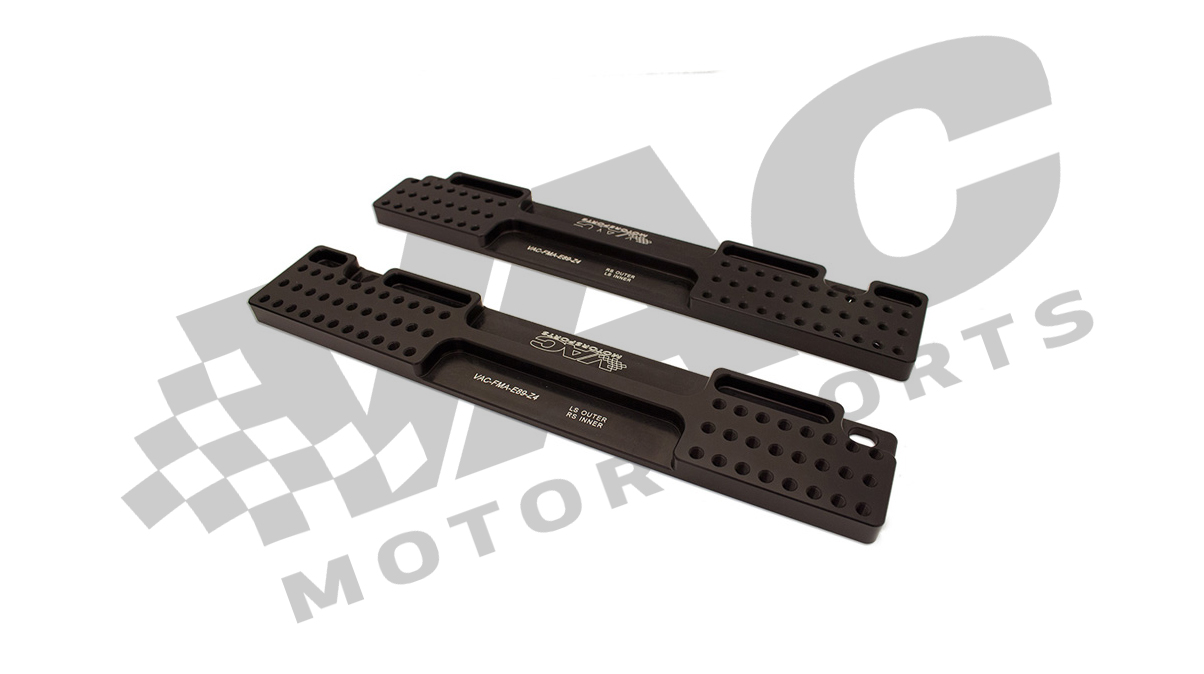

The Original and best; our CAD designed, thoroughly tested and CNC machined Billet Aluminum Floor Mount Adapters have been a best seller for years.
VAC Motorsports’ FMA's allow the lowest and cleanest install of any seat brackets available. Hands down the best floor mount adapters available for your BMW, where form follows function. Our lightweight and improved design is a reflection of our commitment to offer the highest quality race components available.
While other copy-cat designs sacrifice weight-savings, aesthetics, and driver/passenger-specific install to be cheap, our original FMA's allow you the perfect amount of adjustment for nearly any seat install.
Our Floor Mount Adapters allow you to mount Side Mounts from race seats, or Seat Sliders such as Sparco, Momo, or VAC brand. They do not allow factory seats or bottom mount seats to directly attach.
Allows easy installation for nearly all: Momo, Sparco, OMP, Status, Racetech, Recaro, Cobra, Kirkey, Bride, Sabelt, Corbeau and most other racing / sports seats.
Adapts side mount seat brackets to the factory floor mounting points (our VAC mounts highly recommended)
Lightweight, strong and aesthetically pleasing design
Fully compatible with sliders
Kit comes complete with all hardware needed
Made from Aerospace quality 6061-T6 Billet Aluminum
If you are installing 5 or 6 point harnesses; mount your eye-bolts right to our anti-sub mounting bracket. No more scraping, drilling or welding the floor pan.
VAC Tech Tip:
We strongly recommend adding our Superior Side Mount Adapters or purchasing them together in our discounted Race Seat Installation Kit: They tend to fit much better than the seat manufactures side mounts in the tight floor pan and help you center your seat to the steering wheel.
There are currently no reviews of this
product.
Submit a Review
- E85 BMW Z4 2.5i 2003, 2004, 2005; Z4 3.0i 2003, 2004, 2005; Z4M Roadster 2006, 2007, 2008; Z4 Roadster 3.0i 2006, 2007, 2008; Z4 Roadster 3.0si 2006, 2007, 2008
- E89 BMW Z4 sDrive30i 2009, 2010, 2011; Z4 sDrive35i 2009, 2010, 2011, 2012, 2012, 2013, 2014, 2015; Z4 sDrive35is 2011, 2013, 2014, 2015; Z4 sDrive28i 2012, 2013, 2014, 2015
VAC Floor Mount Adaptors Installation Instructions
Please use these instructions and guidelines to aid in the installation of your new product.
Your kit should include the following:
(2) Floor Mount Adapter “bars” - inner and outer
(4) Bolts- M8 x 1.25 x 25mm Hex Head
(4) Washers- 8mm ID, 24mm OD
(4) Wave washers- 8mm ID, 15mm OD
|
1. Please check that all components listed above have arrived in your box and are ready to be used. Look closely as some components may have shifted, or become mixed in with packing materials. If you are missing any components, please contact us right away.
2. For all BMW applications: If one Floor Mount Adapter bar is wider than the other, the widest bracket always mounts facing the outside of the car.
3. Begin to bolt our adapters to the floor first, keep them loose enough to move around a bit.
4. If you have maintained your original interior, carpet and insulation can compress down without any issues whatsoever. If you are not comfortable doing this, you can use a washer under each mounting location to space it up slightly.
5. Seat placement is a personal preference. If you’re aiming for best high performance ergonomics, a good outline to work within is one that keeps the driver fairly upright and comfortable. One that the pedals can be fully depressed without over extending the knee joint, and one that enables the driver to turn the wheel close to 180 degrees without taking their hands off the wheel (usually your elbows will be at, or close to, right-angles).
6. For the E36 and E46 cars the wide Floor Mount Adaptor mounts closest to the door.
7. Once you have found your location, you are ready to bolt your side brackets to the seat and set the seat down onto the floor mount adapters, again keep everything a little loose. If you have VAC side mount brackets (like in our Race Seat Installation Kit), skip to step #9.
8. At this step, if you have run out of adjustment room (if your side mount brackets are too wide for your floor pan), may we recommend our VAC Superior Side Mount brackets, made specially narrow for tight installs on most modern floor pans. If you have adequate clearance and room for comfortable placement of your seat, proceed on.
9. Eye up the closest holes to use on your seat and clearly mark them on the seat and bracket (we recommend using some masking tape for this job). Sometimes, depending on the manufacturer and type of your seat, an elongation of the holes in the side bracket may be required.
10. Once everything is assembled loosely and your seat is positioned where you want to use it, start to tighten the floor mount adapter bolts and then the side mount to floor mount adapter bolts in that order. You can then tighten your seat to the side mount brackets.
11. You are finished! Test your seat mounts and seats for play, you should have none. Make sure everything is tightened properly and securely, and that you have left no tools in the vehicle.
Enjoy your sport seats and be safe!
|
