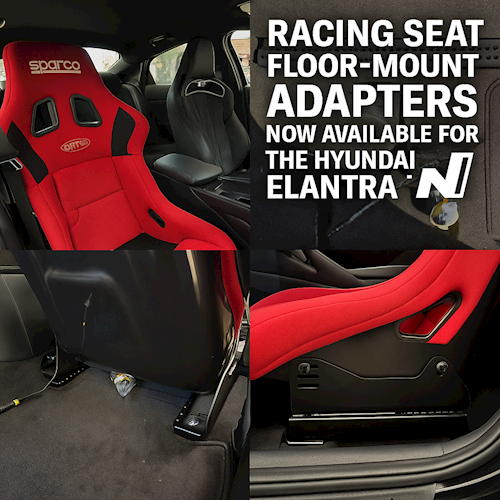

Introducing VAC Motorsports' Floor Mount Adapters, specially designed for Hyundai Elantra N, and i30 N vehicles. These adapters are a must-have for drivers who frequent the race track or desire race seats in their street cars.
Compatible with:
- 2017+ Hyundai i30 N
- 2020-2026 Hyundai Elantra N
Renowned as the original and best adapter in the market, our Floor Mount Adapters are meticulously crafted using CAD design, rigorous testing, and precision CNC machining from Billet Aluminum. With a proven track record as a top seller for years, our FMA's ensure the lowest and cleanest seat installation of any floor mounts available. Emphasizing both form and function, they epitomize excellence in design for your Hyundai Elantra, or i30.
Unlike imitations, our lightweight and enhanced design reflects our unwavering commitment to providing the highest quality components. While other copy-cat designs compromise on weight, aesthetics, and specific driver/passenger installations in favor of affordability, our original FMA's strike the perfect balance. Offering easy adjustment for almost any seat installation without adding bulk or compromising on appearance, our FMAs are now more affordable than ever!
Experience effortless installation with our Floor Mount Adapters, compatible with a wide range of racing and sports seats such as Momo, Sparco, OMP, Status, Racetech, Recaro, Cobra, Kirkey, Bride, Sabelt, Corbeau, and more. These adapters seamlessly adapt side mount seat brackets to your vehicle's factory floor mounting points (we highly recommend pairing them with our VAC Universal Side Mount Brackets). Furthermore, VAC FMA's are fully compatible with sliders, ensuring versatility and convenience.
The kit includes all the necessary hardware, and the Aerospace quality 6061-T6 Billet Aluminum construction guarantees a lightweight, strong, and aesthetically pleasing design. Say goodbye to the hassle of scraping, drilling, or welding the floor pan when installing 5 or 6 point harnesses – simply mount your eye-bolts directly to our anti-sub mounting bracket.
Please note that our Floor Mount Adapters are designed to accommodate side mounts from race seats and seat sliders from Sparco, Momo, or our VAC brand. They are not compatible with factory seats or bottom mount seats for direct attachment.
VAC Tech Tip:
For optimal results, we strongly recommend complementing your setup with our Universal Side Mount Brackets. These adapters offer a superior fit within the tight floor pan and assist in centering your seat to the steering wheel, ensuring an optimized driving experience.
There are currently no reviews of this
product.
Submit a Review
VAC Floor Mount Adaptors Installation Instructions
Please use these instructions and guidelines to aid in the installation of your new product.
Your kit should include the following:
(2) Floor Mount Adapter “bars” - inner and outer
(4) Bolts- M8 x 1.25 x 25mm Hex Head
(4) Washers- 8mm ID, 24mm OD
(4) Wave washers- 8mm ID, 15mm OD
|
1. Please check that all components listed above have arrived in your box and are ready to be used. Look closely as some components may have shifted, or become mixed in with packing materials. If you are missing any components, please contact us right away.
2. For all BMW applications: If one Floor Mount Adapter bar is wider than the other, the widest bracket always mounts facing the outside of the car.
3. Begin to bolt our adapters to the floor first, keep them loose enough to move around a bit.
4. If you have maintained your original interior, carpet and insulation can compress down without any issues whatsoever. If you are not comfortable doing this, you can use a washer under each mounting location to space it up slightly.
5. Seat placement is a personal preference. If you’re aiming for best high performance ergonomics, a good outline to work within is one that keeps the driver fairly upright and comfortable. One that the pedals can be fully depressed without over extending the knee joint, and one that enables the driver to turn the wheel close to 180 degrees without taking their hands off the wheel (usually your elbows will be at, or close to, right-angles).
6. For the E36 and E46 cars the wide Floor Mount Adaptor mounts closest to the door.
7. Once you have found your location, you are ready to bolt your side brackets to the seat and set the seat down onto the floor mount adapters, again keep everything a little loose. If you have VAC side mount brackets (like in our Race Seat Installation Kit), skip to step #9.
8. At this step, if you have run out of adjustment room (if your side mount brackets are too wide for your floor pan), may we recommend our VAC Superior Side Mount brackets, made specially narrow for tight installs on most modern floor pans. If you have adequate clearance and room for comfortable placement of your seat, proceed on.
9. Eye up the closest holes to use on your seat and clearly mark them on the seat and bracket (we recommend using some masking tape for this job). Sometimes, depending on the manufacturer and type of your seat, an elongation of the holes in the side bracket may be required.
10. Once everything is assembled loosely and your seat is positioned where you want to use it, start to tighten the floor mount adapter bolts and then the side mount to floor mount adapter bolts in that order. You can then tighten your seat to the side mount brackets.
11. You are finished! Test your seat mounts and seats for play, you should have none. Make sure everything is tightened properly and securely, and that you have left no tools in the vehicle.
Enjoy your sport seats and be safe!
|
