The VAC Motorsports S54 Water Temperature Manifold serves as a simple and effective method of monitoring water temperatures in the cylinder head, where temperature samples are the most accurate.
This manifold has beveled, flat surfaces on each side to facilitate the installation of your water temperature gauge, any sensor type or data logging uses.
We have already pre-drilled and tapped a 1/8th NPT, making the most common sensors easily adaptable . The extra room that the second flat area provides allows you to tap any thread pitch you may need.
Water temp is critical to monitor both on and off the track. This simple but effective part makes installing sensors a snap, with no permanent modifications needed.
Includes 1/8th NPT port pre-tapped. A second flat is blank, so any sensor thread pattern required can be tapped. Great for track builds or any S54 swapped vehicles.
Installs with the factory O-ring.

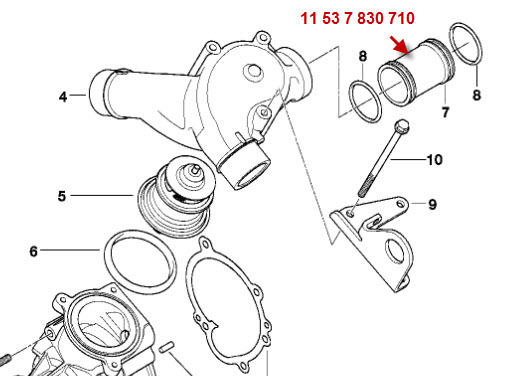

Replaces BMW OE Part #11 53 7 830 710

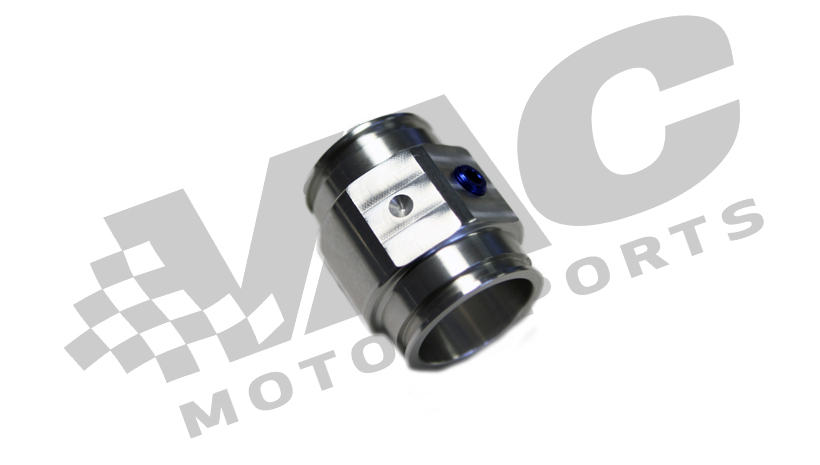

Please note: Temperature sensor shown installed for example only, NOT included with manifold.
